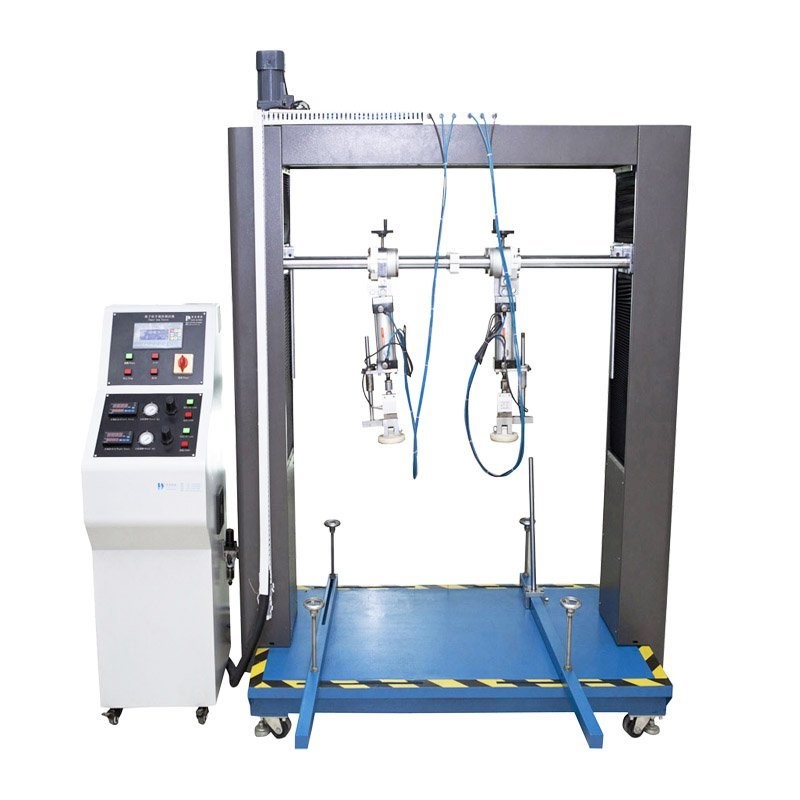

CHAIR ARM LEG DURABILITY TESTER

Sofa Seat and Back Testing Machine is to simulate normal functional use to determine the strength of the sofa structure by applying to various parts with loads or forces. Using certain shape and load modules, with specific form, frequency, respectively, repeating load seat, back and arm-rest . Each point has force sensor to show the pressure.

Products description :

The use of Chair Arm and Leg Durability Testing Machine to evaluate the ability of the chair to withstand stresses that occur as a result of repetitive loading that can be imposed on the armrest structure. Loading of this type is the result of using the armrests as a support when getting into or out of the chair.

Design standard:

BIFMA X 5.1-2011 clause 18 Leg strength tests;

clause 21 Arm durability test – cyclic

Tester Introduction:

Test rig for chair leg strength test according to BIFMA X 5.1 clause 18 and arm strength &durability test according to BIFMA X 5.1 clause 13.14&21.

Technical Parameters

• Test rate: 10 to 30 times / min
• Armrest height adjustment range: 550mm ~ 950mm
• Adjustable applied force and adjustable force holding time
• Power: one phase, AC 220V, 50Hz
• Dimension: w*d*h (188*103*230cm)

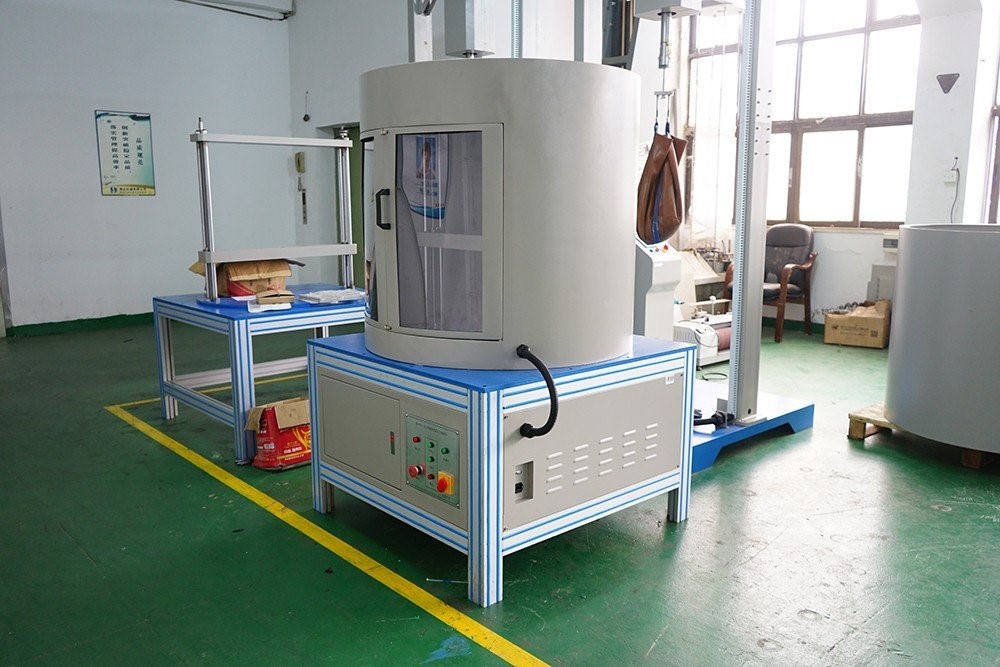

CHAIR BASE STATIC TESTER

Main function:

Chair Base Tester is used for the vertical pressure testing, destructive testing and fatigue testing of the office chair base (Star Base), repeated pressure loading in setting force and test cycle as the fatigue test. All holding pressure time and cycle number of tests can be adjusted.

Design standard:

BIFMA X5.1-2011 7

Technical parameter：

Capacity	2000kg (Transcell senor )
Unit switch	gf，kgf, N, LBf, W, KN, T
Load resolution	1/250,000
Load accuracy	within ±0.5%
Max stroke	1000mm including grip
Max sample width	1000mm
Test speed	(0.01-100) mm/min (computer input)
Drive device	imported servo motor
Stroke resolution	0.001 mm
Weight	452kg
Power	1 phase, AC 220V, 10A
Accessories	one computer with operation software
